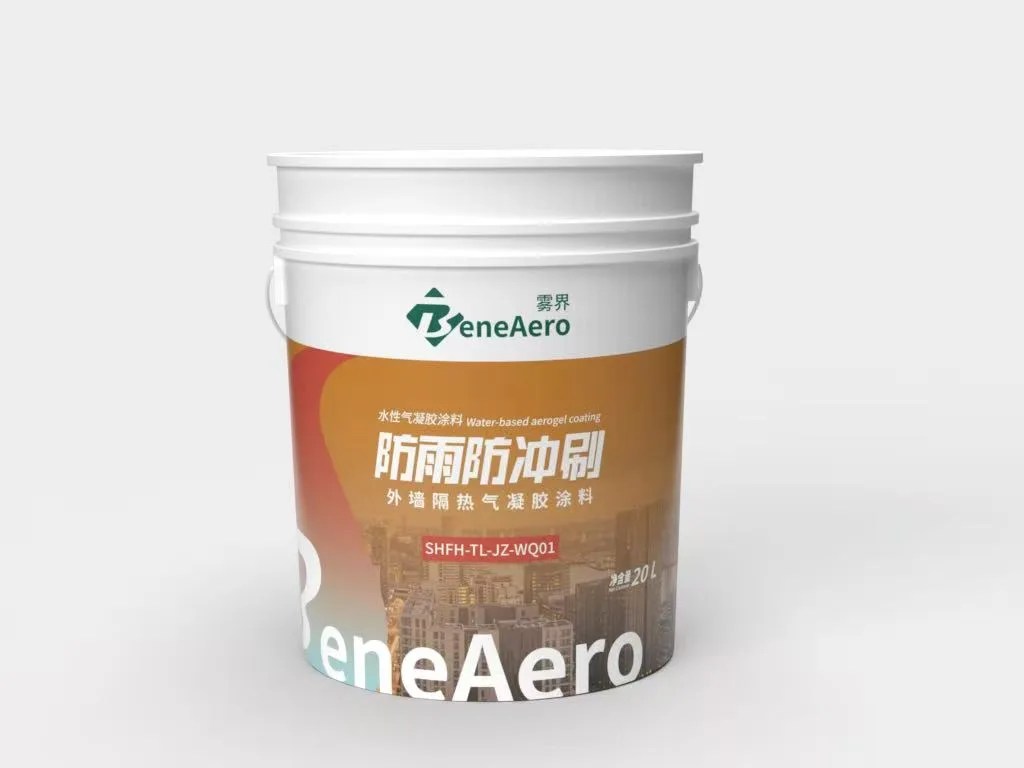

Exterior Wall Insulation Aerogel Coating
The Exterior Wall Insulation Aerogel Coating uses advanced nano-aerogel insulation technology. Compared to traditional insulation materials such as polystyrene boards and rock wool, it is lighter, more efficient, and safer.
Share your application, dimensions and quantity using our enquiry form.
Description
- Product Name
Exterior Wall Insulation Aerogel Coating
- Product Description
The Exterior Wall Insulation Aerogel Coating uses advanced nano-aerogel insulation technology. Compared to traditional insulation materials such as polystyrene boards and rock wool, it is lighter, more efficient, and safer. Its ultra-low thermal conductivity and high reflectivity effectively reduce heat transfer into buildings while preventing wall heat absorption from raising indoor temperatures, thereby enhancing indoor comfort.
- Product Specifications
| Product Name | Exterior Wall Insulation Aerogel Coating |
| Model | SHFH-TL-JZ-WQ01 |
| Function | Insulation, anti-peeling, flame retardant |
| Usage | Roofs, exterior wall insulation, factory insulation renovation |
| Specification | 10Kg/20L |
| Consumption | 0.6 Kg/mm/m² |
- Product Parameters
| Item | Parameter |
| Color | White (adjustable) |
| Thermal Conductivity | ≤0.046 W/m·K |
| Density | 0.57±0.02 g/cm³ |
| Adhesion Strength | ≥0.6 MPa |
| Water Resistance | No abnormality after 96h immersion |
| Fire Rating | B2 |
| VOC Content | Compliant (≤80 g/L) |
| Abrasion Resistance | Flexible |
| Long-term Usage Temperature | <150°C |
- Product Features
- High-Efficiency Insulation:Aerogel particles enhance coating insulation, effectively reducing indoor temperature.
- Excellent Weather Resistance:Suitable for high-temperature, high-humidity, and strong UV areas; maintains color and texture over long-term use.
- Waterproof and Breathable:Hydrophobic, prevents water penetration while allowing vapor to escape, avoiding wall dampness and mold.
- Energy Saving & Eco-Friendly:Reduces air-conditioning energy consumption and building energy use, meeting green building standards.
- Fire-Resistant:Meets B2 flame-retardant standard, improving building safety.
- Design Purpose
Aerogel exterior wall coatings function as finishing or intermediate layers to provide insulation and energy-saving effects. Depending on construction processes, they can also offer textured surfaces and integrate with additional decorative insulation systems.
In regions with long sunlight exposure, a 0.4mm coating can achieve the same insulation effect as 35mm polystyrene boards. In regions with shorter sunlight exposure, the low thermal conductivity of aerogel coatings ensures effective insulation.
- Recommended Application
| Substrate Type | Layer Structure | Notes |
| Leaking Concrete | Substrate + Waterproof Coating + Exterior Wall Aerogel Insulation Coating | Topcoat may include water-in-water, color flat coating, reflective insulation coatings as needed. Rusted metal requires rust conversion. |
| Hollow Concrete | Substrate + Grouting Material + Alkali-resistant Primer + Exterior Wall Aerogel Insulation Coating | – |
| Ordinary Concrete | Substrate + Alkali-resistant Primer + Exterior Wall Aerogel Insulation Coating | – |
| Metal Roof | Substrate + Anti-rust Primer + Exterior Wall Aerogel Insulation Coating | – |
- Application Methods
Preparation:
| Item | Spray | Trowel/Roll |
| Surface Requirement | Free of oil, dust, and loose particles. New walls fully dry, moisture content <14%, pH <10 | |
| Tools | Sprayer, roller, masking tape, mixer, protective mask, suit, harness, helmet, shoes, goggles, protective film | Trowel, scraper, roller, masking tape, mixer, protective mask, suit, harness, helmet, shoes, goggles, protective film |
| Recoat Interval | Wait until first coat dries, generally ≥24h | |
| Conditions | Do not apply if temperature <5°C. Extend recoat time if humidity >85% | |
| Method | Stir with electric mixer ≥1 min before application | |
| Tool Cleaning | Wash promptly with tap water |
Procedure:
| Step | New Concrete | Old Concrete |
| 1 | – | Check walls, remove hollow areas, clean surface contaminants, sand chalking layers, repair corners |
| 2 | – | Apply interface primer by roller |
| 3 | Apply putty leveling (mesh) | – |
| 4 | Apply white/same-color sealing primer (penetrating) 1 layer | – |
| 5 | Spray/brush aerogel insulation coating | – |
| 6 | Roll/spray topcoat (colored or clear) | – |
Precautions:
- Check steel/wood door and window frames for proper positioning and secure connections. Fill gaps with cement-sand mortar in layers.
- Finish door/window frames, scaffold-support walls, and repair areas after curing period. Insufficient curing due to construction schedule may compromise coating quality.
- Wall moisture content <15% (national standard 10%), pH <10 meets application conditions. Measure moisture content using instruments.
- Old surfaces should have intact coatings with good adhesion. Remove loose coatings and contaminants, wash with 20% bleach solution for 48h, rinse, then apply coating. Conduct small-area tests for compatibility and adhesion before full application.
